BATLIBOI BPR-50

Datasheet


Machineno 2050-br311

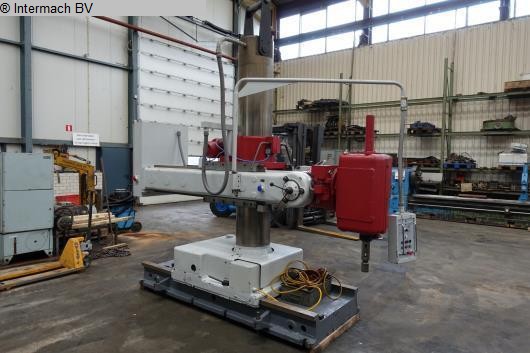

Machine type Rapid Radial Drilling Machine
Make BATLIBOI
Type BPR-50
Build year
Control conventional
Storage location holland
Origin italie
Delivery time immediately
Freight basis immediately
Price on request

Technical details

bore capacity in steel (diameter) 50 mm
arm length 2000 mm
workpiece height max. mm
total power requirement kW
weight of the machine ca. 6,5 t
dimensions of the machine ca. 5,8x4,5x3,4 m

Technical description

Brand: Batliboi
Type: BPR-50
Boiler radial drilling machine
Capacity: 50 mm
Throat depth: 2.000 mm
Spindle taper: MK5
Stroke: 350 mm
Drilling Spindle: 75 mm ø
Head in degrees adjustable
Speed min: 16 RPM
Speed max: 800 RPM
Clamping surface: 2.610 x 1.050 x 260 mm
Machine dimensions (lxwxh): 5.740 x 4.450 x 3.397 mm
Machine weight: 6.570 kg
