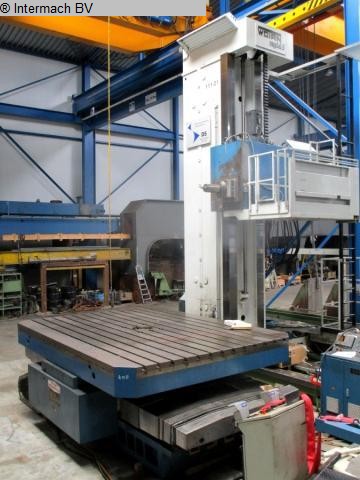

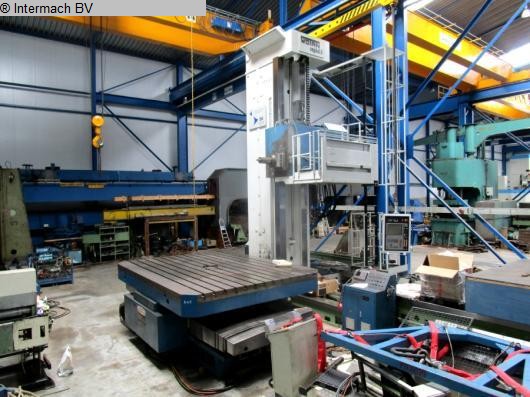

WOTAN Rapid 5C

Datasheet


Machineno 2050-1210057
Machine type Floor Type Boring and Milling M/C - Hor.
Make WOTAN
Type Rapid 5C
Build year 2004
Control CNC
Storage location Holland
Origin Deutschland
Delivery time immediately
Freight basis immediately
Price on request

Technical details

spindle diameter 160 mm
x-travel 10.000 mm
y-travel 3.000 mm
Control
total power requirement 120/63 spindel kW
weight of the machine ca. 63 t
dimensions of the machine ca. 15x3.85x7.36 m

Technical description

Stocknumber 1210057
Type of machine CNC Floortype boring machine
Make WOTAN
Type Rapid 5C
Build in 2004

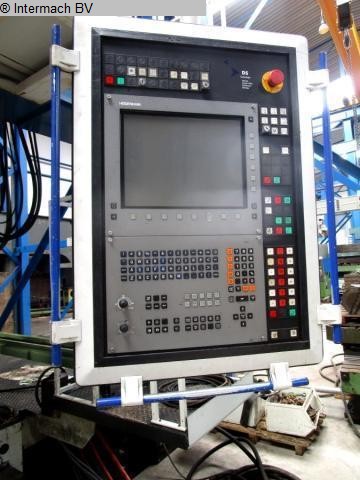

Type of control HEIDENHAIN iTNC 530

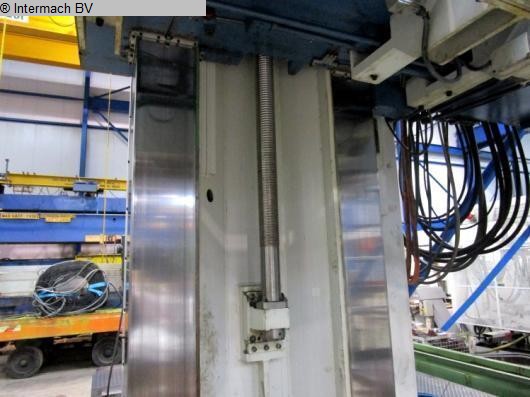

Spindle diameter 160 mm
X-stroke (mm) 10.000
Y-stroke (mm) 3.800
Z-stroke (mm) 700
W-stroke 700 mm
Tool Taper Iso 50
Speeds (Rpm) 1,25 - 1250
Feeds (mm/R) 1 - 5000 mm/min
Rapid feeds 5 mtr/min.
Total Power (KW) 120 /spindel 83
Lenght (mm) 14.500
Width (mm) 3.850
Height (mm) 7.360
Weight 62.300 kg


Additional information
completely overhould in 2004 and retrofitted by Dorries Scharmann with CNC
control HEIDENHAIN iTNC 530

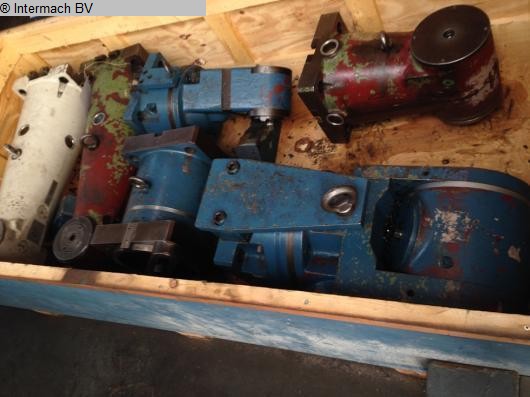

- 4 different angular milling heads
- hydrostatic spindle bearing
- aerostatic guideways
- coolant device
- chip conveyor
- oil cooler

Film YouTube: https://www.youtube.com/watch?v=ks6D5rutslg
