| Machineno | 2050-1110055 |
| Machine type | Travelling column milling machine |
| Make | ZAYER |
| Type | KCU 6000 |
| Build year | 1992 |
| Control | CNC |
| Storage location | Holland |
| Origin | spanien |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| x-travel | 6000 mm |
| y-travel | 2000 mm |
| z-travel | 3000 mm |

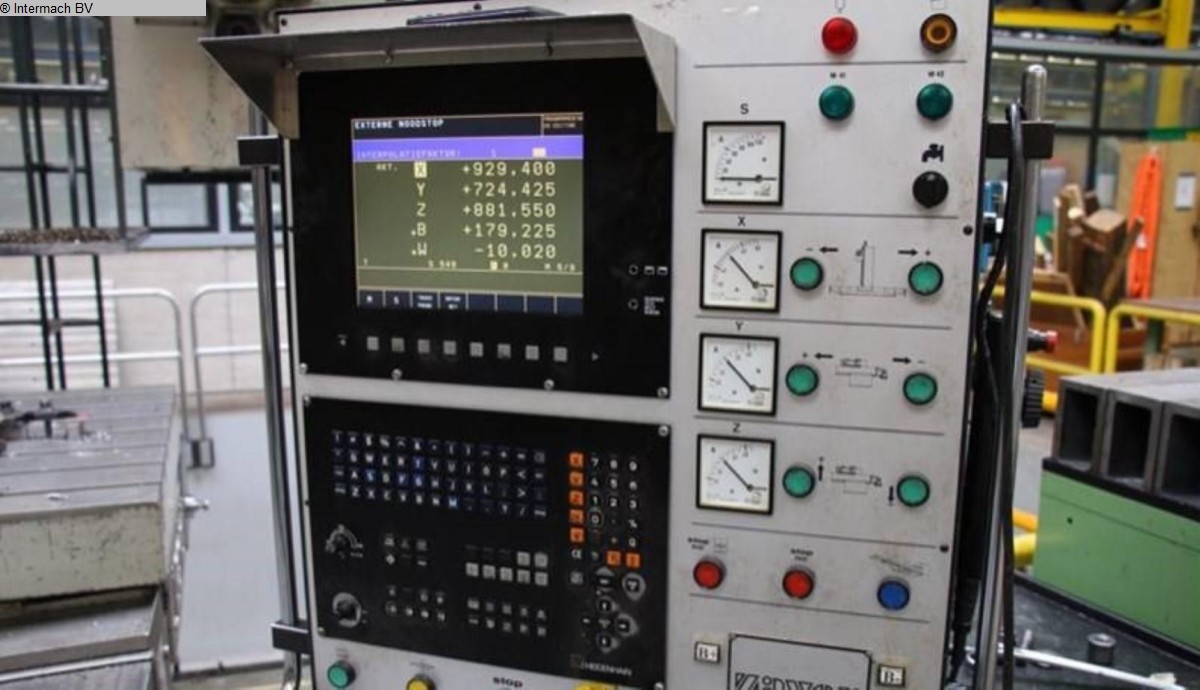

| Control | heidenhain TNC 415 |
| total power requirement | 34 kW |
| weight of the machine ca. | 31 t |
| dimensions of the machine ca. | 7000 mm m |
|
Stocknumber 1110055 Type of machine CNC Floortype milling machine Make ZAYER Type KCU6000 Build in 1992 Type of control Heidenhain TNC 415 X-stroke (mm) 6.000 Y-stroke (mm) 2.000 Z-stroke (mm) 3.000 Speeds (Rpm) 20 - 1.800 Admission in spindlehead BT50 Feeds X (mm/R) 5 - 5000 mm/min Feeds Y (mm/R) 5- 5000 mm/min. Feeds Z (mm/R) 5- 5000 mm/min. Rapid feeds 10.000 mm/min. Total Power (KW) 34 Lenght (mm) 11.000 Width (mm) 2.500 Height (mm) 7.000 Weight 31.000 Kg Additional information Juaristi MG6' turntable: 1500 x 1200 mm Cooling system: 2.5 Bar Tool cooling: 15 Bar |
