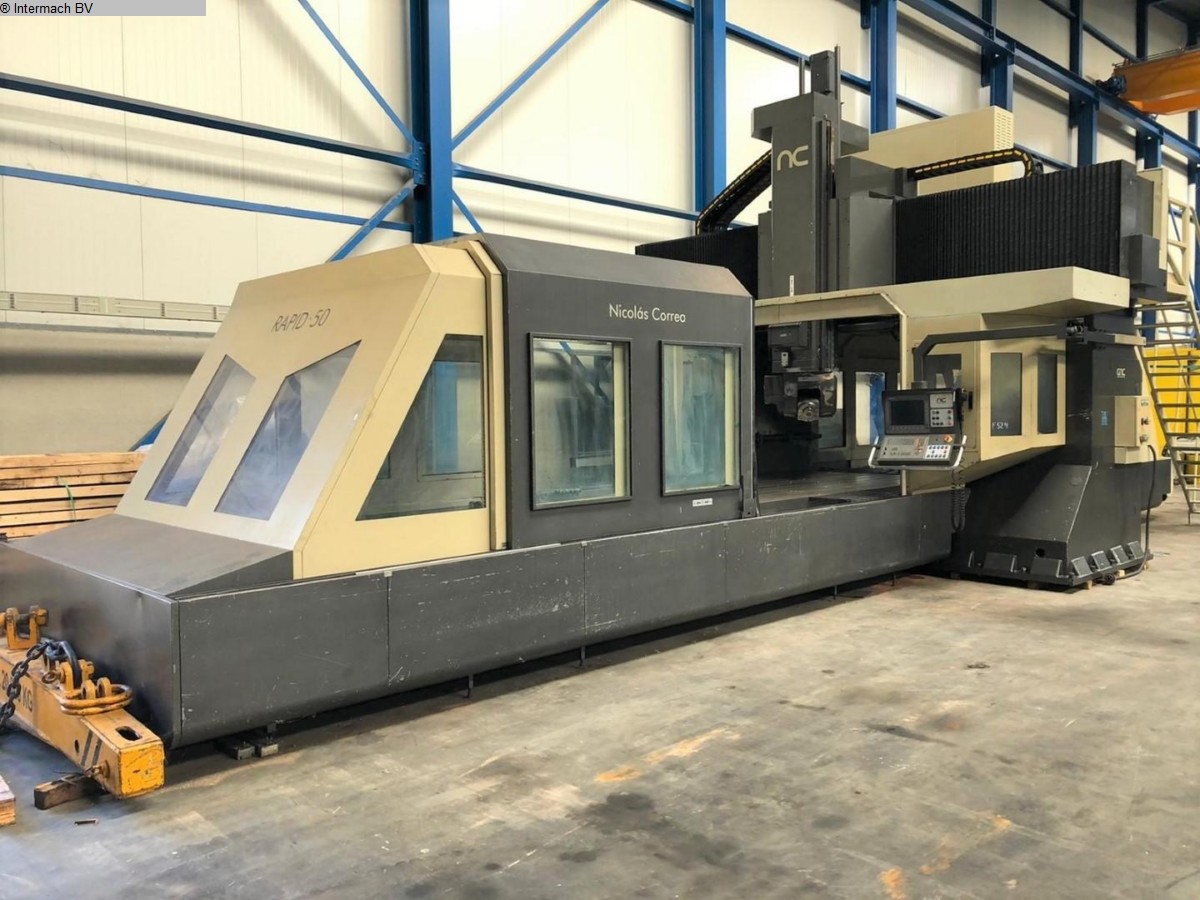

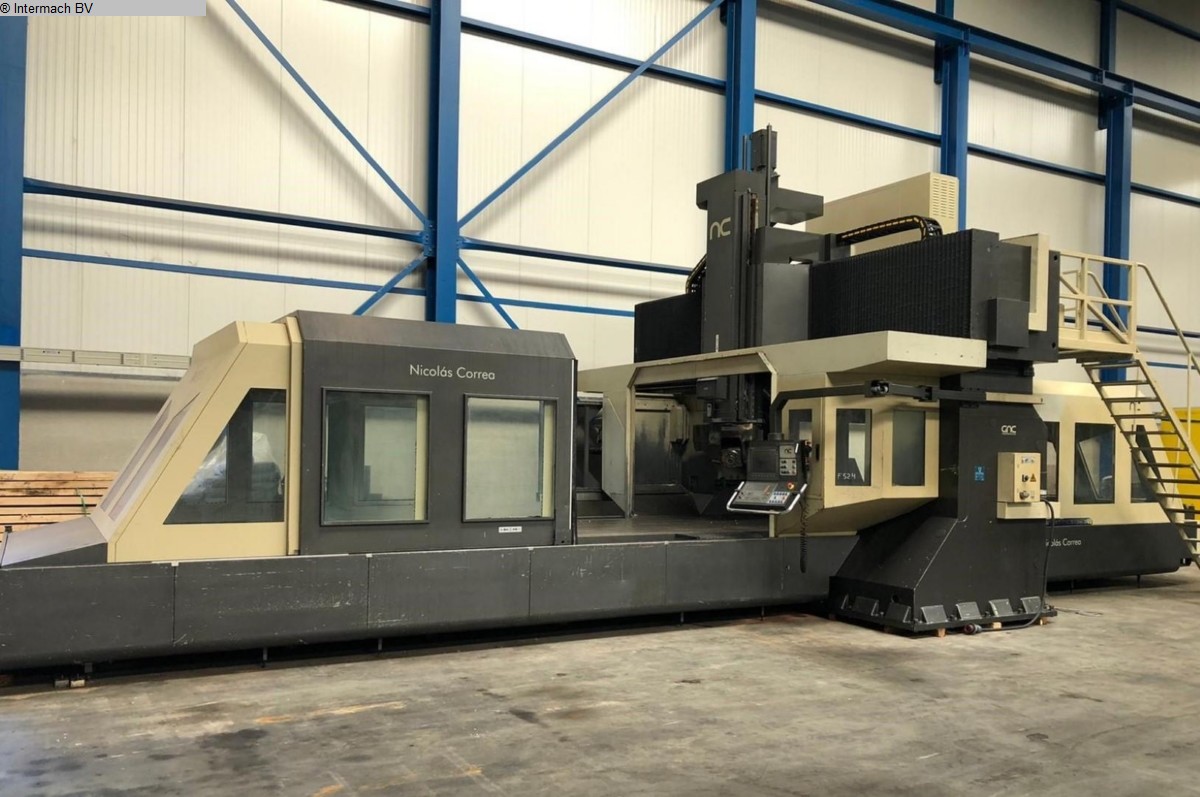

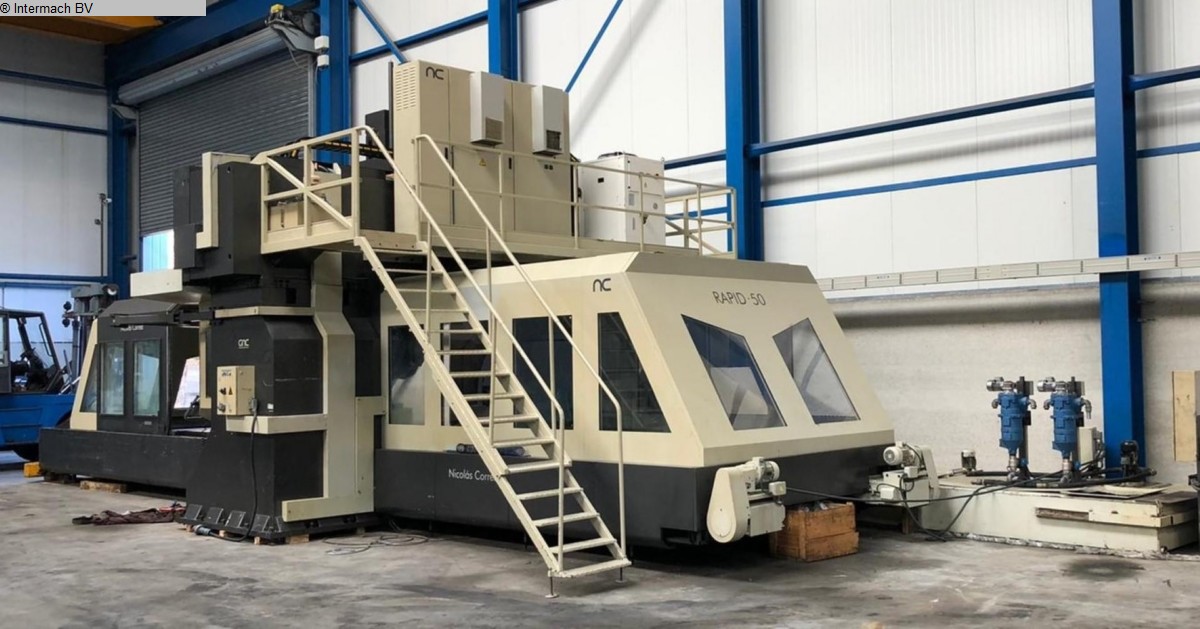

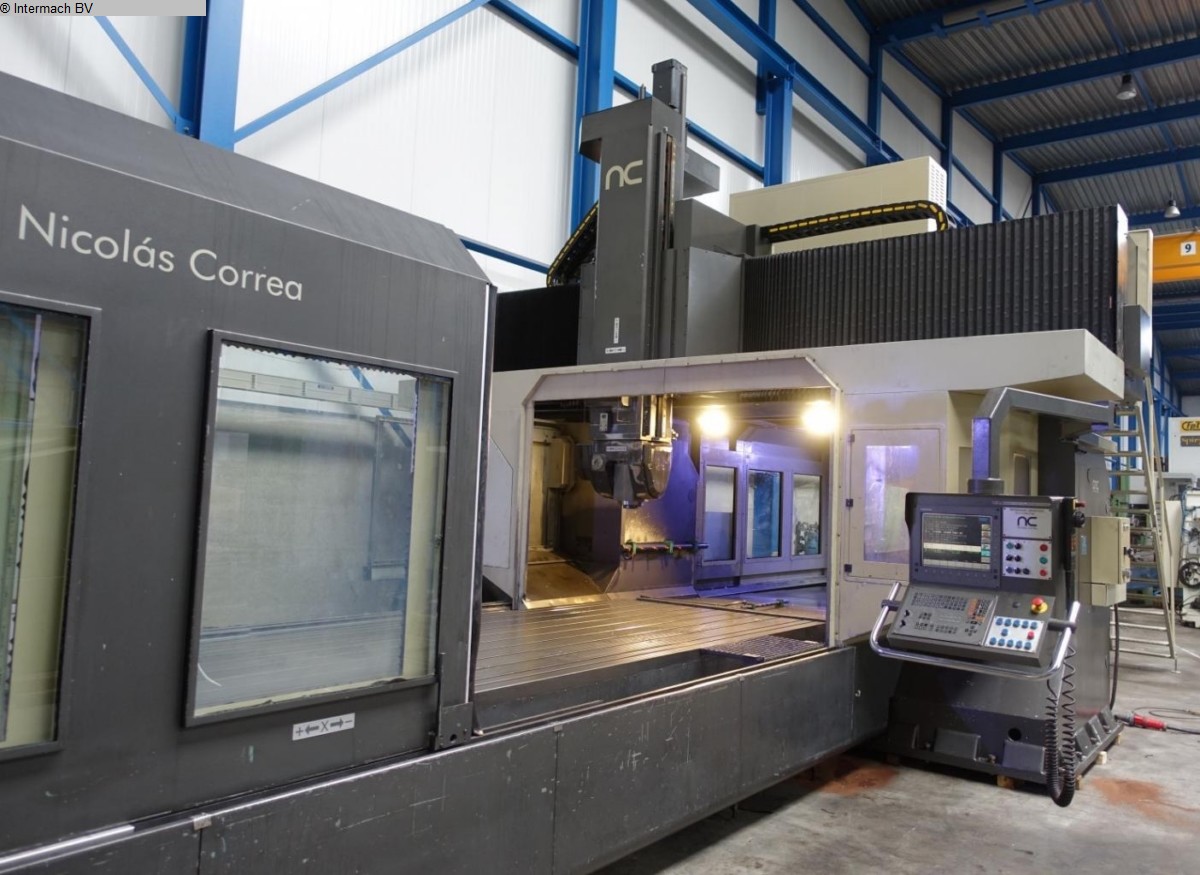

| Machineno | 2050-1110051 |
| Machine type | Planer-Type Milling M/C - Double Column |
| Make | CORREA |
| Type | rapid 5 |
| Build year | 2004 |
| Control | CNC |
| Storage location | Holland |
| Origin | spanien |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| x-travel | 5000 mm |
| y-travel | 3100 mm |
| z-travel | 1200 mm |
| Control | |
| total power requirement | 20/27 kW |
| weight of the machine ca. | 65 t |
| dimensions of the machine ca. | 15x6,2x6 m |
|
Stock number 1110051 Machine type CNC Portal milling machine Make CORREA Rapid type 50 Year of manufacture 2004 Control type HEIDENHAIN Table size (mm) 5000 x 2000 mm X out (mm) 5000 mm Y-off (mm) 3100 mm Z-off (mm) 1200 mm Table load Max 15 ton Speed (RPM) Max 18,000 Tool holder HSK 63 Gesamtleistung(kW) 20/27 Length (mm) 15000 Width (mm) 6200 Height (mm) 6000 Weight 65 ton Additional information Tool changer for 24 tools 5-axis gesteuerd |
