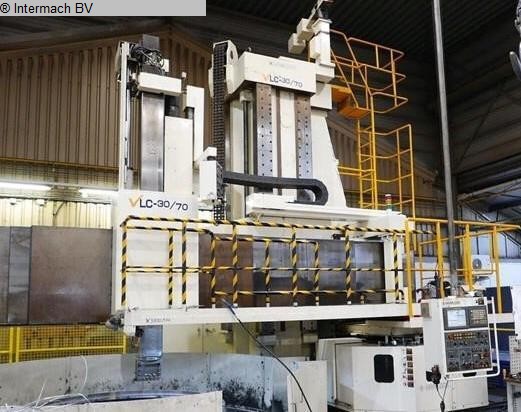

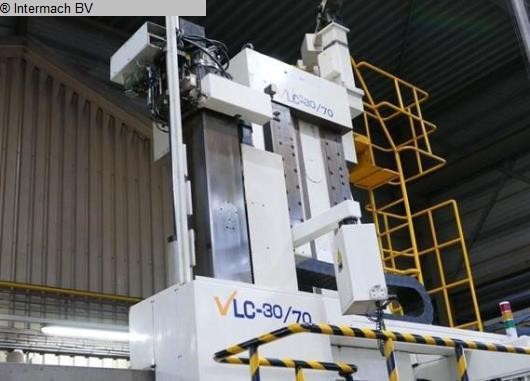

| Machineno | 2050-1020041 |
| Machine type | Vertical Turret Lathe - Single Column |
| Make | HANKOOK |
| Type | VLC 30/70 |
| Build year | 2004 |
| Control | CNC |
| Storage location | Holland |
| Origin | sud korea |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| faceplate diameter | 3.000 mm |
| swing diameter | 7.000 mm |
| turning height | 3.000 mm |
| Control | FANUC 18i-TB |
| total power requirement | 60/75 kW |
| weight of the machine ca. | t |
| dimensions of the machine ca. | m |
|

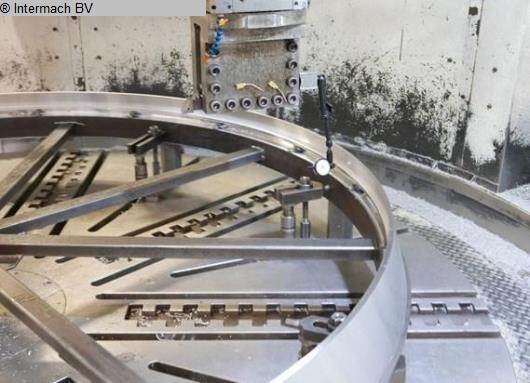

Hankook Type: VLC 30/70 CNC brand: Fanuc CNC model: 18i-TB Year of make: 2004 CNC controlled Jawplate diameter: 3.000 mm ø Maximum turning diameter : 7.000 mm ø Turning height: 3.000 mm X: 2.225 mm Z: 1.600 mm W: 2.000 mm Incl. Spindle for live tools C axis attachment Tool changer: 24 Maximum table load: 30.000 kg Machine weight: 88.500 kg Including tools as in the photos and turntable extensions for turning diameter of 7000 mm ø This machine was overhauled in 2016 In top condition Max. speed C axis: 0 - 0.5 rpm Motor C axis: 9 kW Feeds X / Z: 0.01 - 500 mm / min RPM table: 1-80 rpm |
